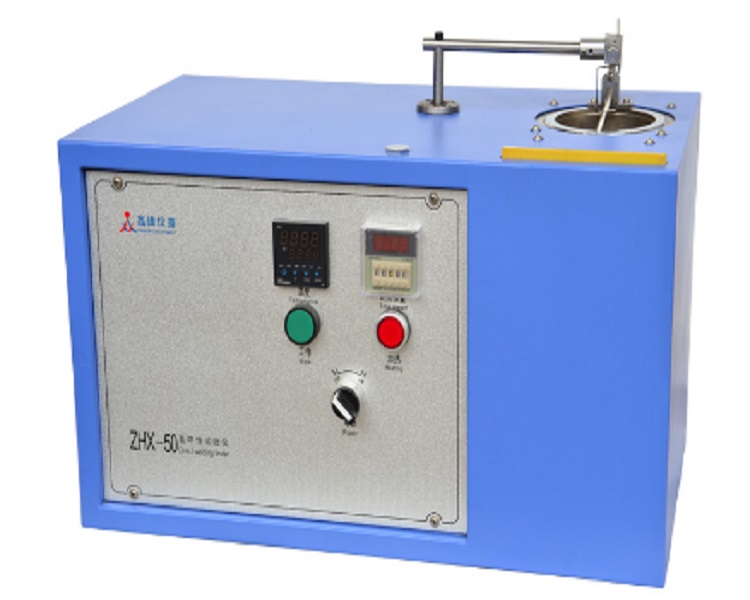

Direct welding tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.14-2008 ◆Used to detect the self-solderability of enameled round wires and wire harness; ◆Set variable temperature range and automatically maintain constant temperature; ◆Under mechanical driven, samples would be withdrawn by the action of automatic insertion and lateral movement, free from vibration and noise; Major Technical Parameters Capacity of solder cylinder ＞500ml Solder temperature Ranging RT+20~500℃ Solder temperature indication error ＜3℃ Test time for samples inserting into solder tin Ranging 0.01s~99h 99min Solder tin heating power 1000W Input power AC220V±10%  50Hz Overall dimensions L×W×H  530×300×350mm Weight 30kg
