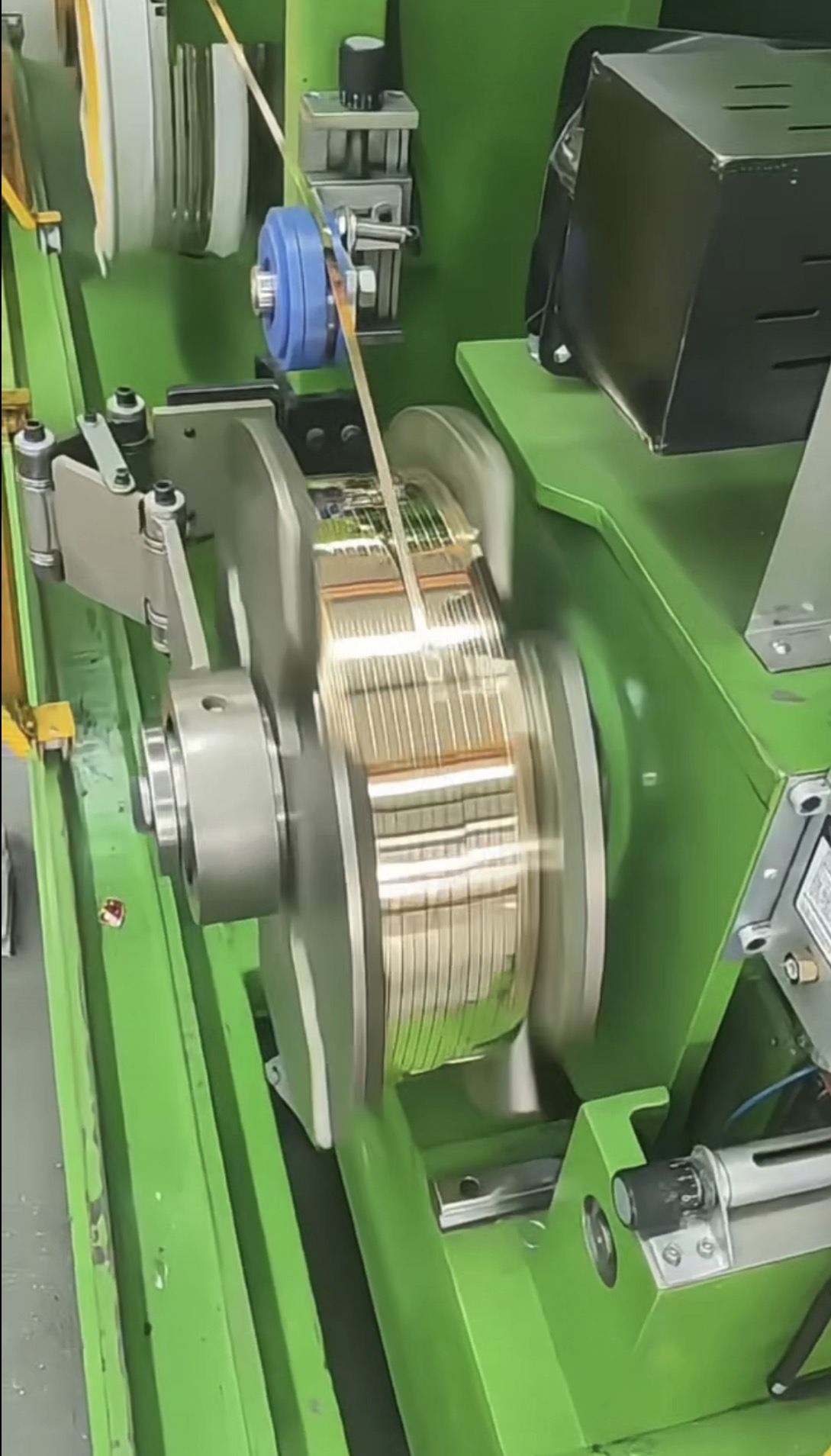

Flat Zipper Wire Rolling mills and drawing machine Zipper Wire production line II. Structural Features (1) Power Control: The main motor is controlled by a frequency converter for stepless speed regulation, allowing for arbitrary adjustment within the range of 50 to 180 meters per minute. The touch screen displays the current main motor speed. The motors for wire feeding, rolling, flat wire drawing, and wire winding are individually equipped with frequency converters. Through a pneumatic tension rod, the signal of resistance value change is automatically calculated under the control of PLC, instructing the frequency converter to immediately adjust the motor speed, ensuring the tension rod remains stable and adjusting to the optimal tension, maintaining uniform thickness of the outgoing wire diameter. (2) Payoff: Vertical type, active motor drive (3) Rolling mills: Precision rollers synchronously press together. (4) Wire drawing method: vertical Drum,Spray type. (5) Wire take-up method: Axial precision wire take-up (6) Use of special high-quality products: A reduction gearbox sourced from Shanghai Teni. All B bearings (NSK) are either imported or sourced from national first-tier brands (Harbin Bearing Group). 3. Performance Parameters: (1) Wire Entry Range: Wire entry 2.6-6.5MM. (2) Payoff: coils (3) Calendering Range: 250*2+180MM*2 rollers, calendering ratio within 20. (4) Mechanical speed: 180 meters/minute/Max. (Production speed is determined according to different specifications). (5) Finished products: Width 3-12M, thickness 0.8-2.8 MM , Tolerance W/T: (+0.00 & -0.02mm) go to product group+

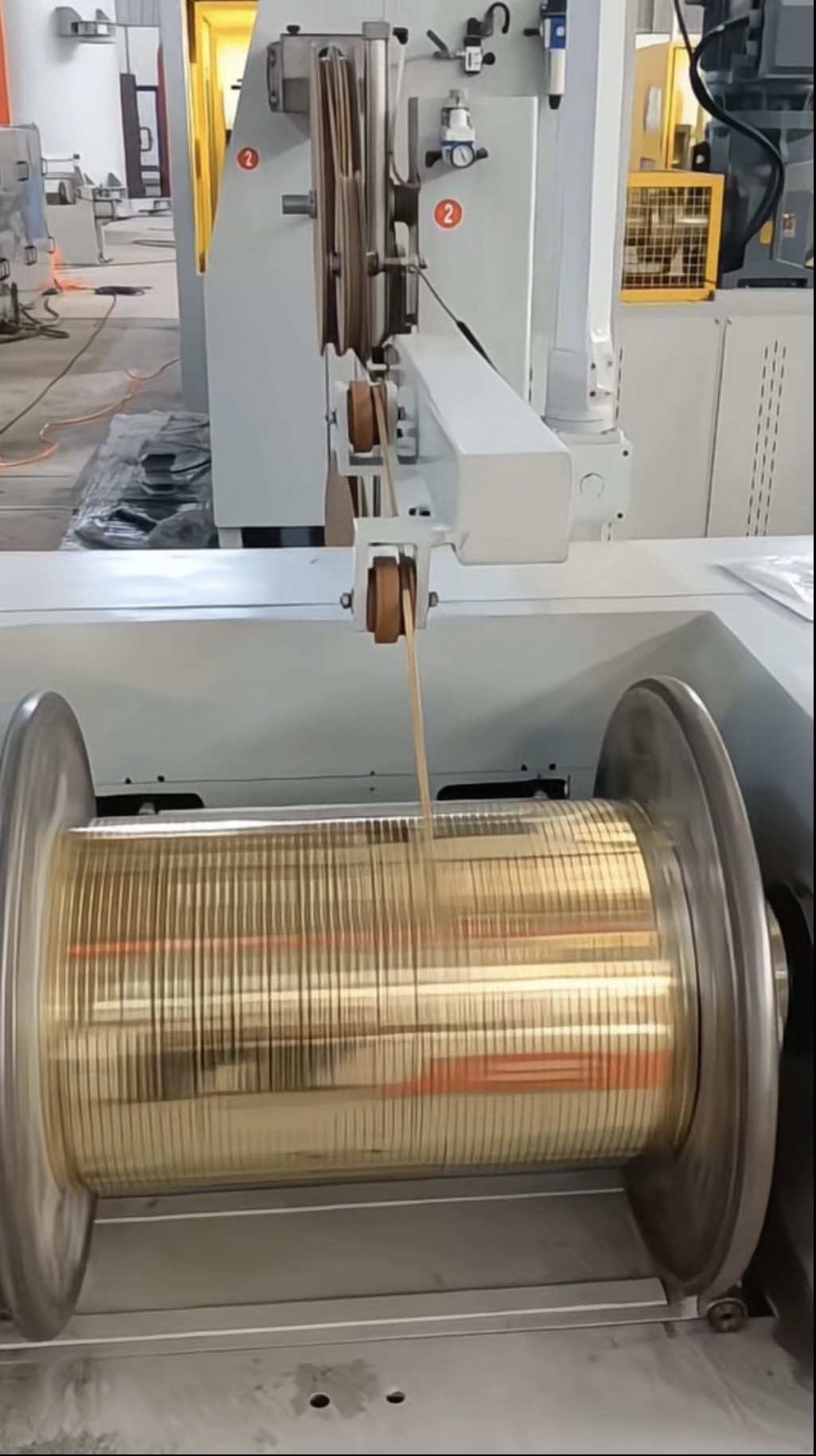

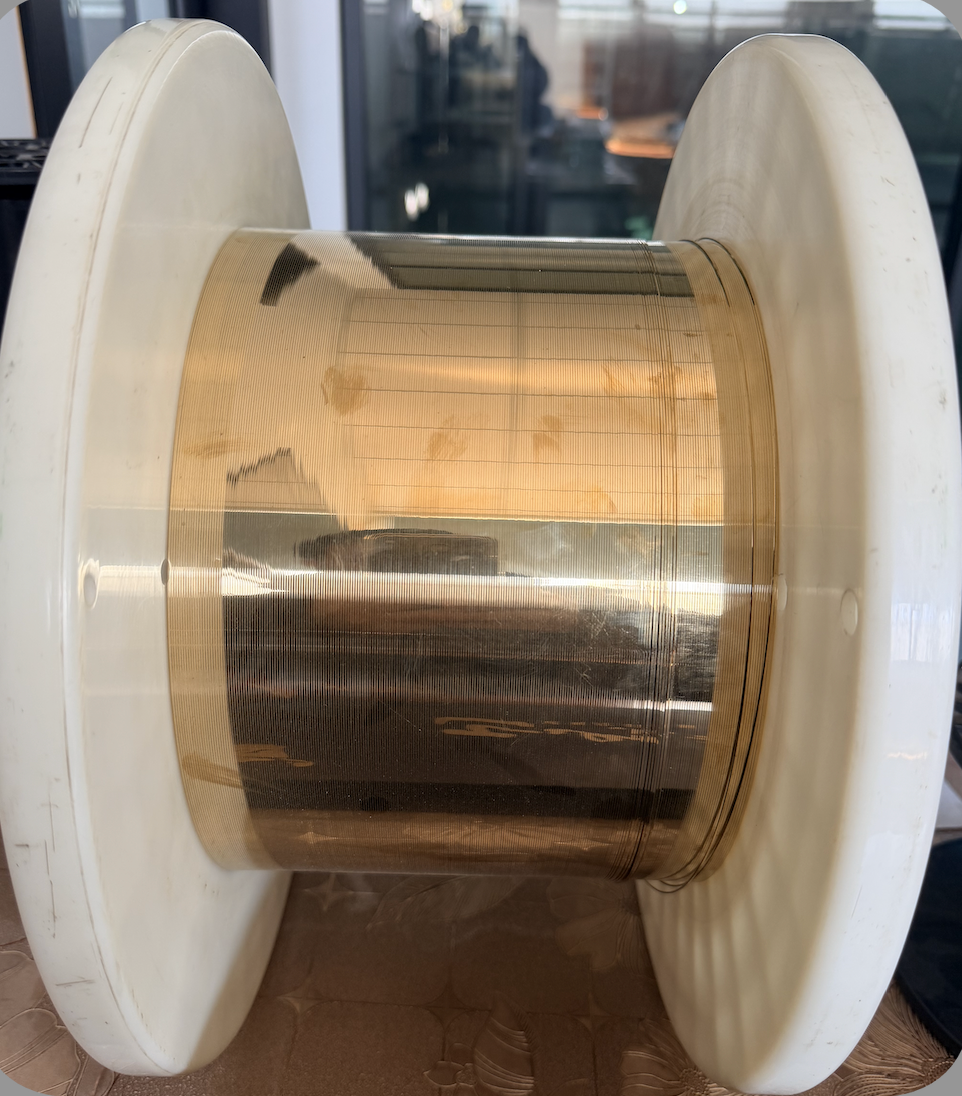

Brass Flat Wire Rolling mills with drawing machine Brass Flat Wire Rolling mills with drawing machine Procution range: 1. Finished products: Width 2-5M, thickness 0.45-4.0 MM , Tolerance W/T : (+0.00 & -0.02mm) 2.Finished products: Width 0.6-2M, thickness 0.45-1.0 MM , Tolerance W/T : ((+0.00 & -0.01mm) 3.Finished products: Width 0.3-1M, thickness 0.035-0.25 MM, Tolerance Width : (+0.0100 & -0.0100mm, Tolerance Thickness+0.0025 & -0.0025mm go to product group+

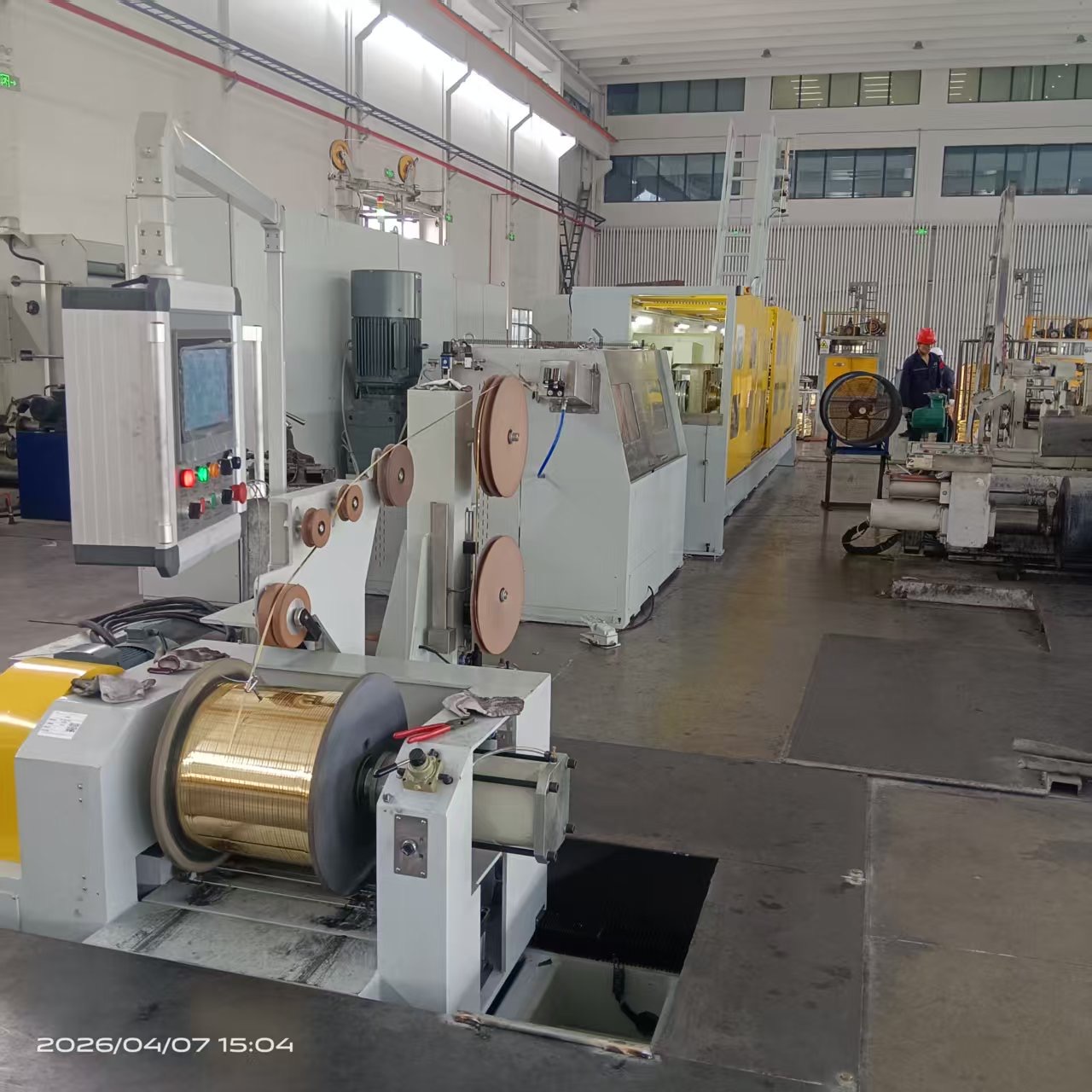

Flat zipper wire Pickling and precision drawing line Flat zipper wire Pickling and precision drawing line. To clean zipper wire and redrawing to fix the final size. (1) Feed Range: Wide 3-12MM, Thick 0.9-3.5MM Flat Wire. (2) Mechanical Speed: 250RPM/Max. (The maximum production process speed is 250 RPM/Max, and the production speed is determined according to different specifications.). (3) Drawing range: surface reduction less than 20% go to product group+

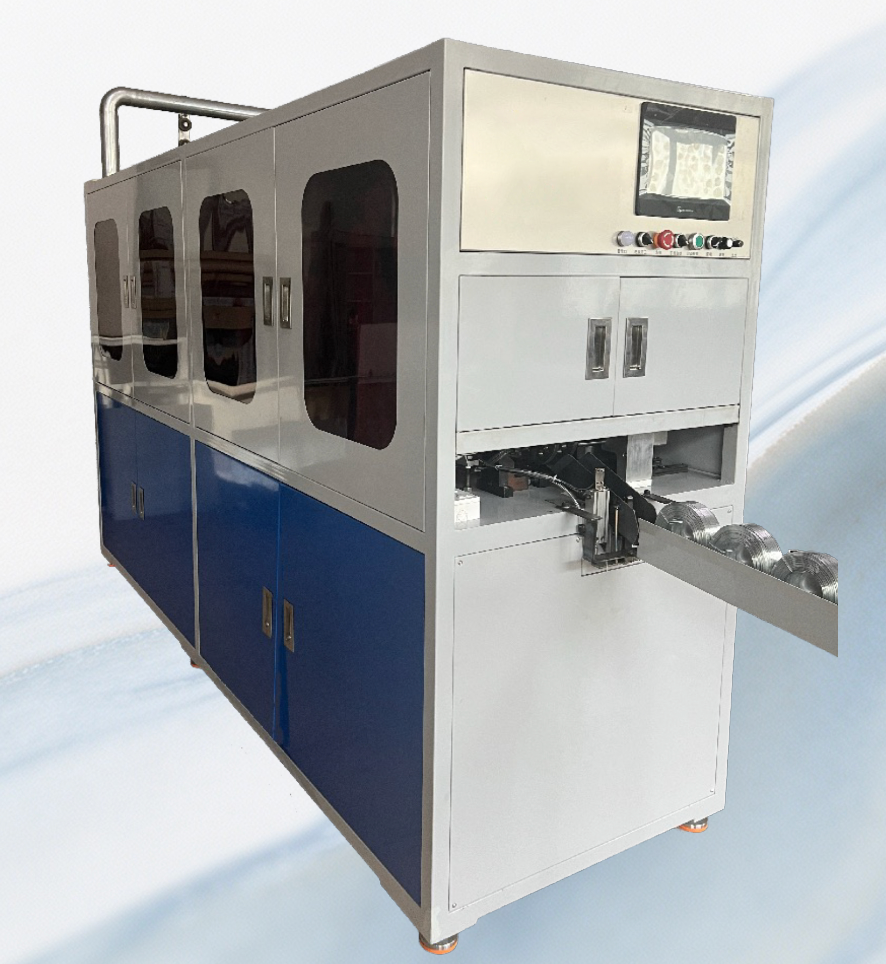

Carton Sealing Staples Flat Wire Rolling Mill Automatic Packing Machine Carton Sealing Staples Flat Wire Rolling Mill Automatic Packing Machine The fully automatic carton flat-wire machine cold-rolls and flattens galvanized or copper-coated iron wire into the special flat wire used for carton sealing staples. It suits packaging material plants and carton factories that mass-produce flat wire in grades such as 16#-20#. go to product group+

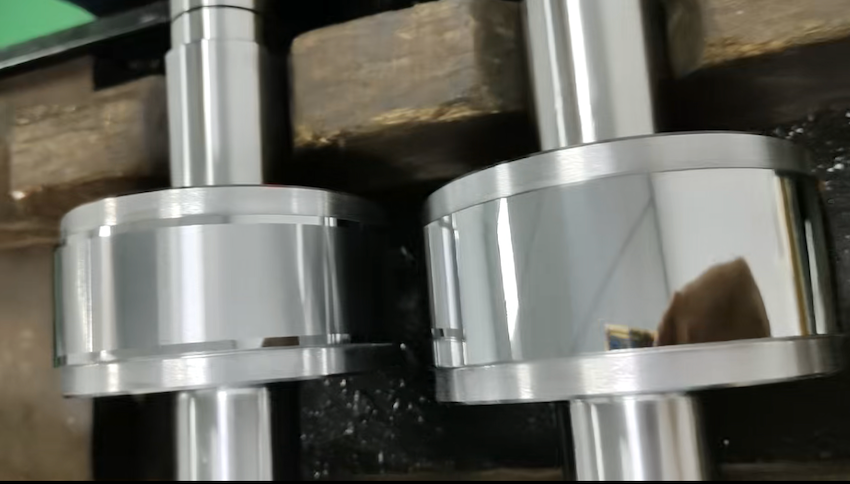

Tungsten Carbide Rollers Tungsten Carbide Rollers Process various types of rollers according to the drawings go to product group+
Electronic and computer connector Square Pin wire making machine Electronic and computer connector pins wire production line Making square pin wire for Electronic and computer connector Finished Square wire production:0.40 * 0.40, 0.45 * 0.45, 0.50 * 0.50, 0.60 * 0.60, 0.64 * 0.64, 0.70 * 0.70, 0.71 * 0.71, 0.80 * 0.80, 0.92 * 0.92, 1.0 * 1.0 go to product group+
