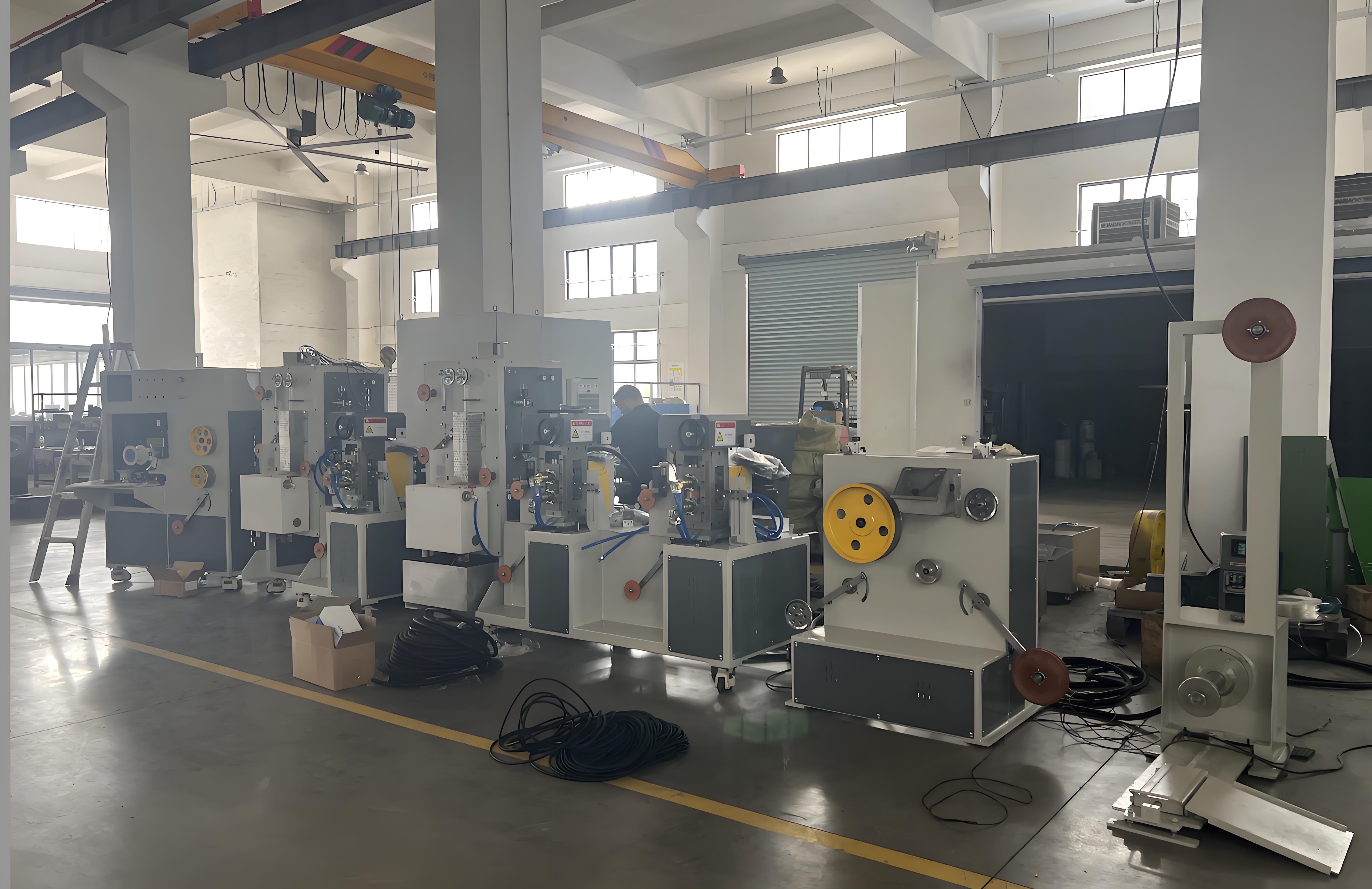

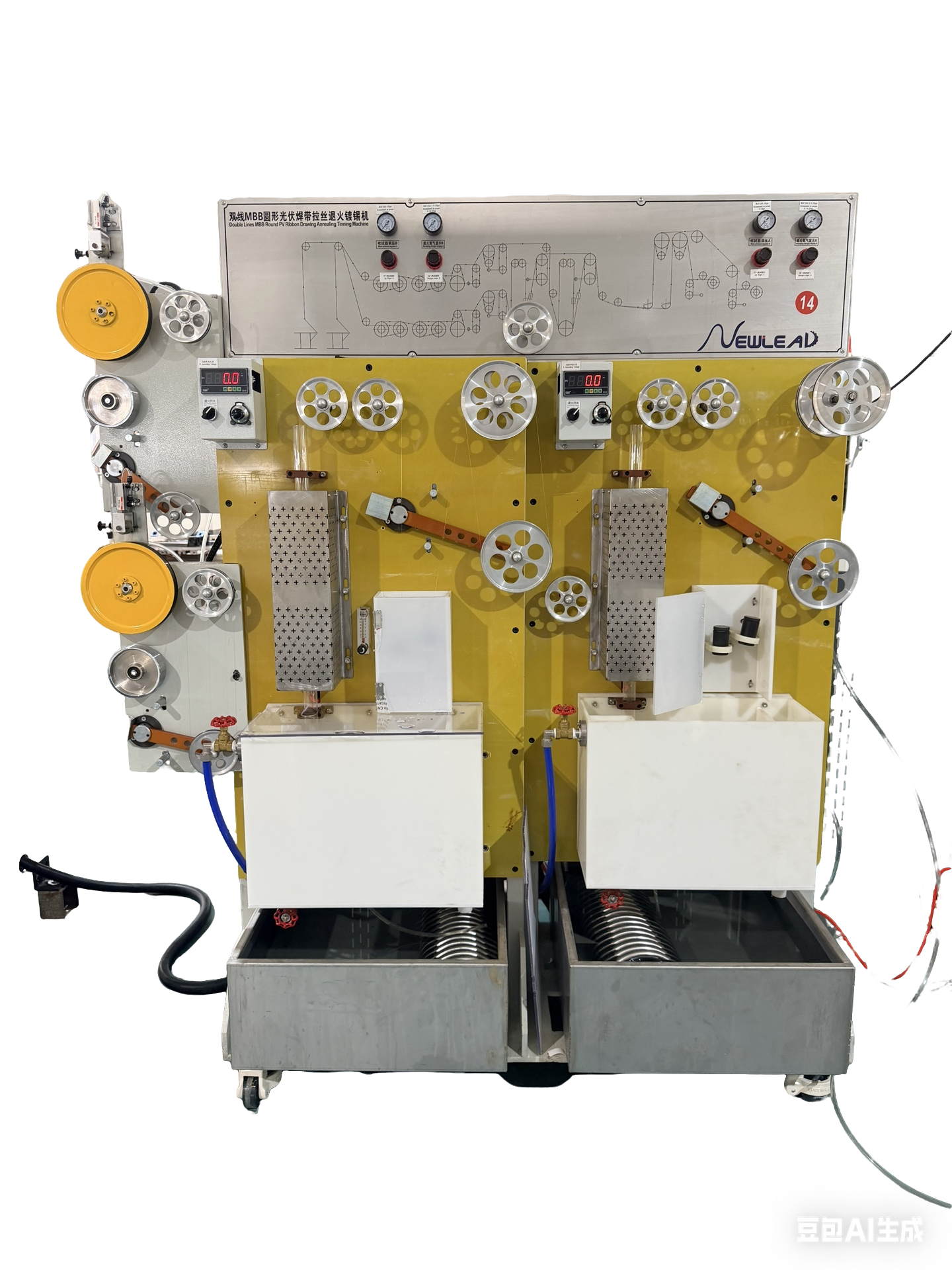

Ultra Thin Flat Wire Rolling mills with inductive annealer

A specially designed production line for copper flat wire to produce ultra-thin silver-plated copper flat wire。 1.Design Features (1) Drive control: stepless speed control by servo motor, freely adjustable within 0-120 m/min; the touch screen shows the current main-machine speed. Rotation of the tension bar drives a precision resistor, and the resulting resistance-change signal is processed automatically by the PLC, which adjusts the motor speed so that the tension bar stays stable and the optimum tension is set, keeping the finished wire diameter uniform. (2) Wire feeding: shaft-type powered pay-off machine. (3) Flattening: precision rolls pressing in synchronism, with in-line laser diameter gauging. (4) Haul-off: wheel-type split winding. (5) Transmission: direct-coupled servo motor and gearbox throughout. (6) Take-up: shaft-driven precision take-up machine. 2.Performance Parameters: (1) Inlet wire range: 0.1-1.0 mm (2) Finished wire range: width 0.3-3.0 mm, thickness 0.03-0.3 mm (3) Mechanical speed: 120 m/min (Max) (4) Max. roll pairs: 3 pairs, width 40, (5) Roll outside diameter: Φ106 mm x 2 + Φ106 mm x 1 (6) Rolling width-to-thickness ratio: #45, laser diameter gauge (7) Rolling passes: three passes (Max) (8) Induction Annealing passes: two passes (Max) (9)Installation power:33KW
